Pipe Railing: Series 5H

Series 5H railing can be made to any length and height to fit any project. Customization options extend further with 5H rail as your product can be curved to any radius or angle that you may require. This full customization also means in-house assembly of your railing, vastly simplifying the installation process.

All top rails and posts are uniquely assembled to run in continuous lengths to create a system that is not only stronger but also more aesthetically pleasing and practical.

Series 5A Aluminum Pipe Assist Railing

The continuous nature of Pipe Railing allows it to transform from a guardrail system to a handrail system if so desired. Series 5A railing is made exactly the same as its Series 5H counterpart, but for handrail and assist applications. Series 5A railing contains the ability to be combined with any of Superior Aluminum’s numerous guardrail systems in order to create a code-compliant combo for OSHA or ADA railing needs.

Best Used For:

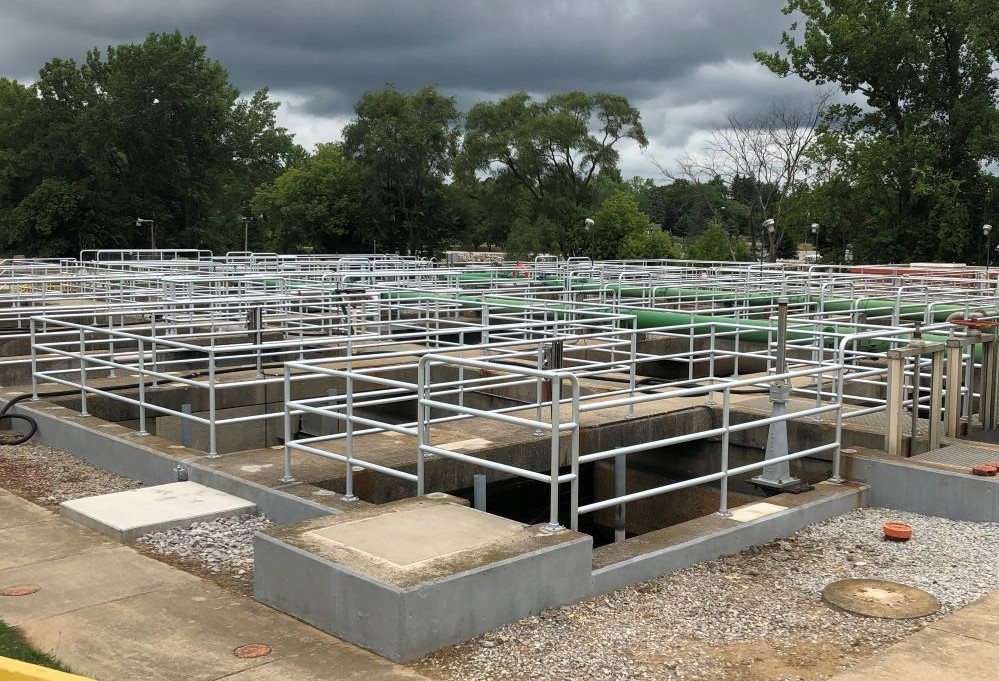

  • Municipal Locations (Water/Wastewater Treatment)
  • Industrial/Manufacturing Settings
  • Commercial
  • Multi-Family Buildings – Handrail
  • Schools & Educational Institutions – Handrail
  • Medical Facilities
  • Athletic Venues

Complies with the following building codes:

  • OSHA
  • ADA
  • ICC

Features

Concealed Fasteners

All fasteners are hidden to create an unblemished look.

Non-Welded

Non-welded design creates an uncontaminated feel and eases the burden of installation.

Continuous Top Rail

Continuous top rail makes for an efficient, practical system.

Standard Finishes – Always Available

WHITE

BLACK

DARK BRONZE

SANDSTONE

GRAY

*SATIN ANODIZED

60 MIN SATIN ANODIZED

60 MIN. BRUSHED ANODIZED

*Anodizing is an electrochemical process that converts the metal surface of aluminum into durable, corrosion-resistant, anodic oxide finish. Please note that deviations are common among similar alloys with even greater deviations occurring among different alloys.

NOTE: Due to variations in individual monitor settings and calibrations, actual product colors may vary from those represented on this site. Color chip samples are available upon request – for more information, please contact us, or locate a representative.

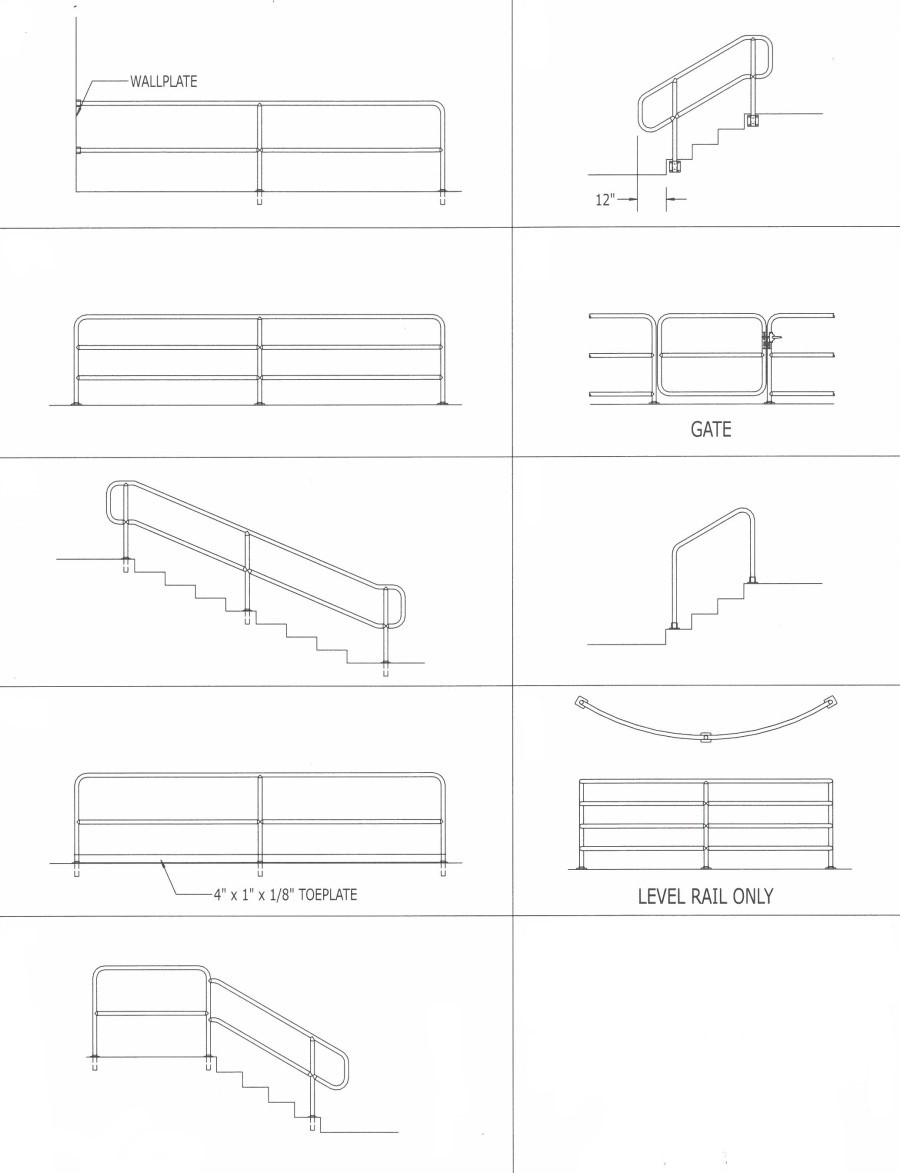

Series 5H Designs

Series 5H Aluminum Pipe Railing is very versatile and presents a wide range of uses, as shown below. With these designs, multiple color finishes are available to match any desired setting. Each is available in level or step/ramp configurations and can be made to fit around any circular or angled structure. No matter the application, Series 5H Pipe Railing can be built with as many horizontal lines as desired.

Series 5H – Non-Welded Aluminum Pipe Railing Specifications

Download Specs
