SNAP-TITE® PVC
Make your next project a breeze with Snap-Tite® by Superior Aluminum. This revolutionary new PVC column wrap design saves you time, money, and hassle when installing columns on the jobsite. Find a local dealer below or contact us for a quote.
The Snap-Tite® Difference
Snap-Tite® vs. Traditional PVC Wraps
How to Install Snap-Tite® PVC Column Wraps
Contractor Reviews Snap-Tite™ PVC Column Wraps
Whether covering a support post or refreshing a porch’s entryway, PVC Porch Column Wraps can be utilized in a variety of situations and provide a truly modern design.
Superior offers a variety of PVC Column Wrap styles, including our revolutionary patented Snap-Tite® design which dramatically cuts down on installation time. Additionally, Superior offers a more traditional line of square column wraps for those wishing to utilize them. All this combined means nearly endless customization.
* Please Note: PVC Column Wraps are non-load-bearing and should only be used in non-load-bearing applications.
Product Qualities
Snap-Tite® Locking – No Adhesive Required
Superior’s Snap-Tite® PVC Column Wraps use a patented design that is the industry’s first and only column wrap that does not require PVC Glue or other adhesives. Simply snap together the columns and enjoy your new Snap-Tite® PVC Column Wrap!
Wrap-Around
All PVC Column Wraps are designed with wrap-around function to conceal unsightly support systems for a modern look.
Paintable Surfaces
All PVC Column Wraps come in a standard white finish. This finish is weather resistant, so no painting is required. However, all PVC Column Wraps can be painted with 100% acrylic exterior paint or acrylic with urethane additive paint. Paint should feature a Light Reflective Value (LRV) of greater than 55.
Features
Paintable Surfaces
All PVC Column Wraps come in a standard white finish. This finish is weather resistant, so no painting is required. However, all PVC Column Wraps can be painted with 100% acrylic exterior paint or acrylic with urethane additive paint. Paint should feature a Light Reflective Value (LRV) of greater than 55.
Snap-Tite® PVC Column Wraps
The industry’s first and only PVC column wrap that doesn’t require adhesive. With its patented design, Snap-Tite® PVC column wraps:
- Snap together – saving over 30 minutes per column
- Eliminate the need for messy glue
- Do not require a return trip to remove straps the following day
Designed with the needs of builders and developers in mind, our column wraps offer all of this with a beautiful, modern appeal.
Installation becomes a snap when using Superior’s patented Snap-Tite® PVC column wraps. No longer must you install columns one day and leave the job site while the glue dries, only to come back to the job site the next day to clean up. With Snap-Tite® PVC column wraps, the staves simply snap and lock together with the patented design of Superior’s newest product line!
See the Difference | Snap-Tite® | Other PVC Columns |
Average time to install? | 9 minutes | 45 minutes |
Needs glue? | No | Yes |
Need to return the next day? | No | Yes |
Customization options | Size, texture, cap/base option | Size, cap/base options |
Standard Finishes – Always Available

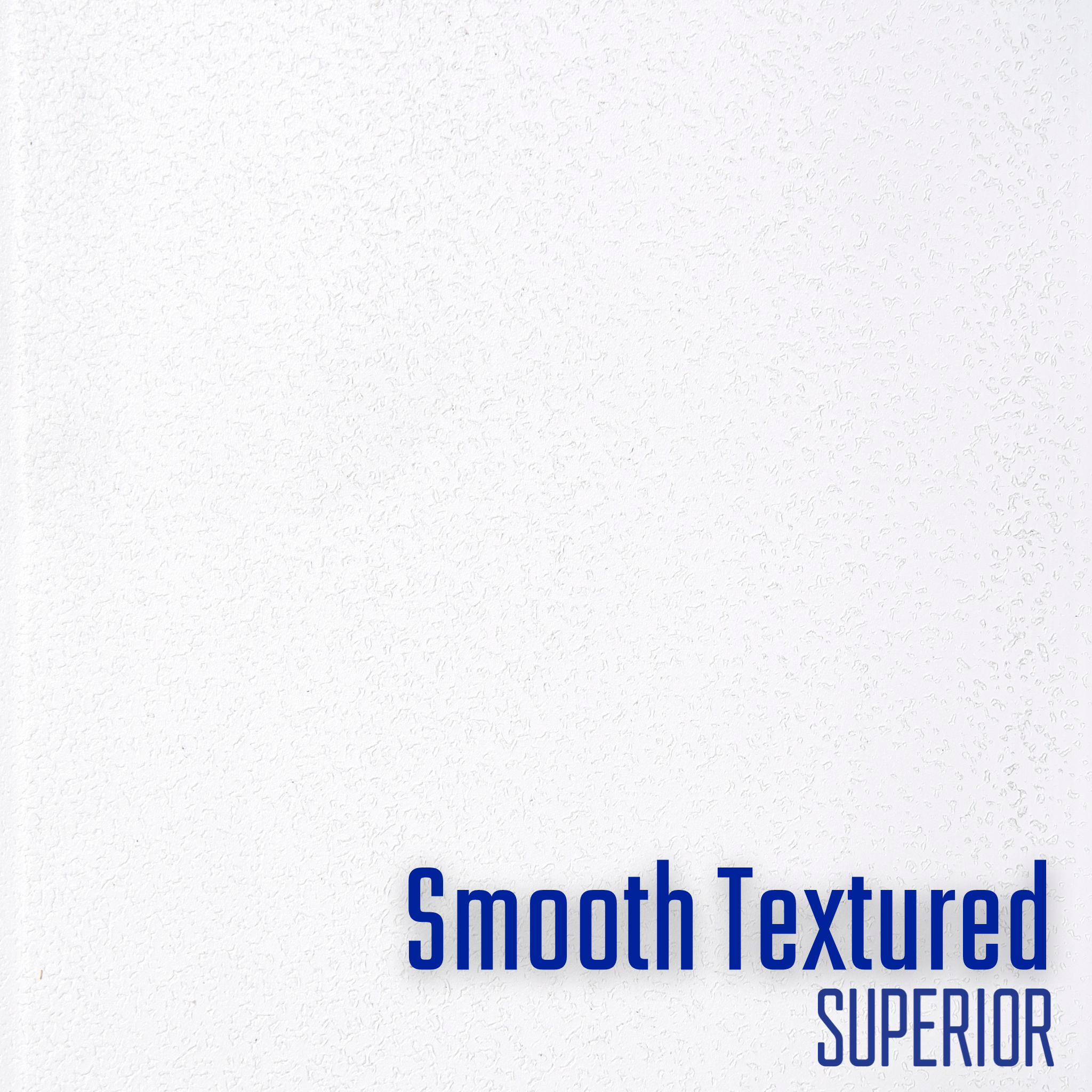

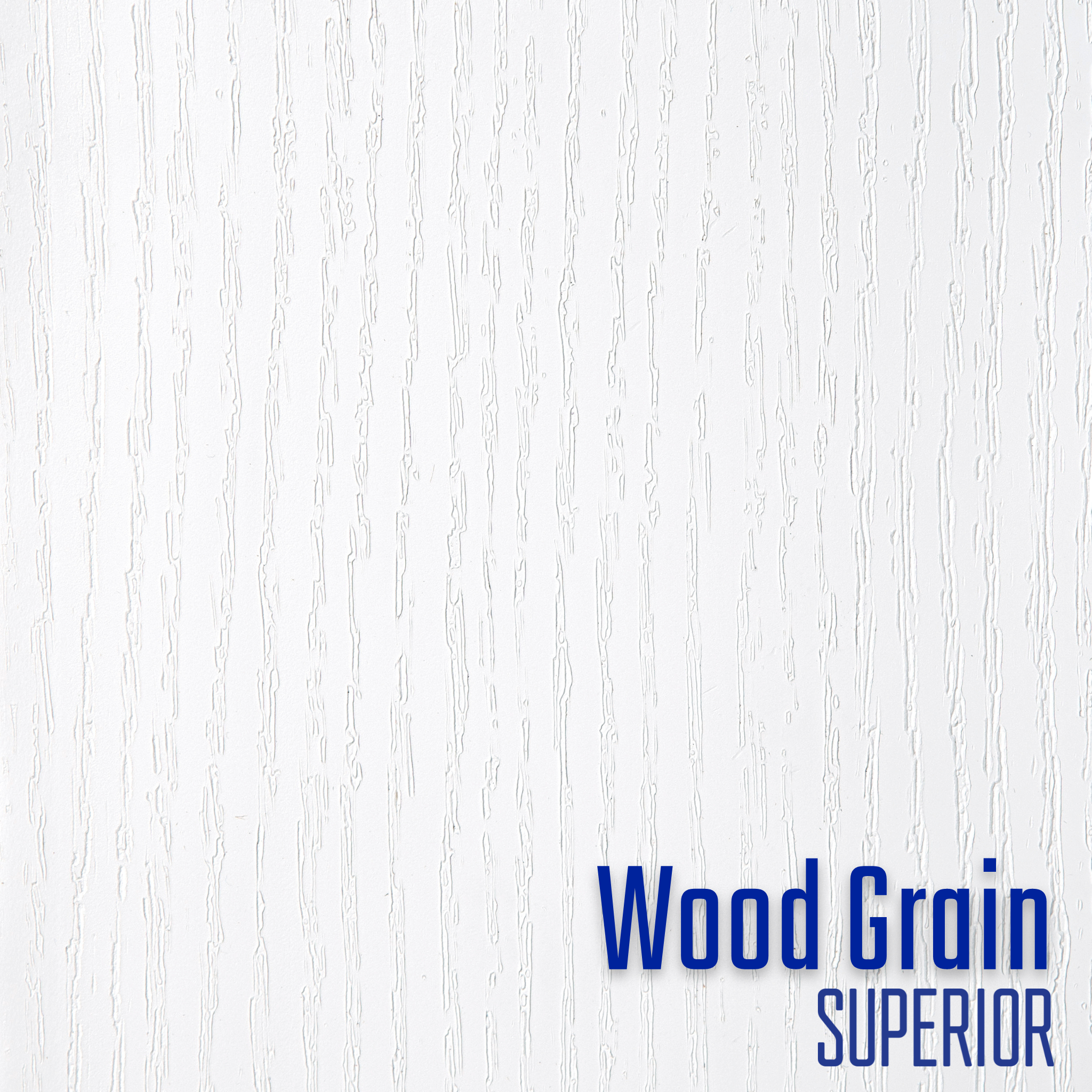

Snap-Tite® is available in wood and smooth grain finishes that allow more customization in matching the architecture of a home. The smooth option does have a slight texture to remove any glare, as is industry standard. The finish options coupled with the extremely simple installation process lend well to a project that is perfect for both new builds and quick remodel projects. Snap-Tite® PVC column wraps are able to be painted within certain parameters. Industry standards specify using 100% acrylic latex (water-based, not oil-based) paint that has a Light Reflectance Value (LRV) of 55% or higher.
WHITE
Snap-Tite PVC Column & Cap/Base Dimension Data
Snap-Tite Column Sizing Data
Column | Nominal Diameter | Outside Diameter | Inside Diameter | Height | Weight (LBS) | PVC Thickness |
6″ x 8′ PVC Wood/Smooth Column | 6″ | 5-1/2″ | 4-3/4″ | 8′ | 20 | 3/8″ |
6″ x 10′ PVC Wood/Smooth Column | 6″ | 5-1/2″ | 4-3/4″ | 10′ | 24 | 3/8″ |
8″ x 8′ PVC Wood/Smooth Column | 8″ | 7-1/2″ | 6-3/4″ | 8′ | 25 | 3/8″ |
8″ x 10′ PVC Wood/Smooth Column | 8″ | 7-1/2″ | 6-3/4″ | 10′ | 31 | 3/8″ |
*The above data only applies to Superior Aluminum Snap-Tite PVC Columns. Other PVC Column data may differ. |
Snap-Tite PVC Column Cap/Base Data
Cap/Base | Nominal Diameter | Outside Diameter | Height | Weight (LBS) |
6″ Parkway | 6″ | 10-1/4″ | 2-1/4″ | .35 |
8″ Parkway | 8″ | 12-1/4″” | 3″ | .45 |
6″ Uptown | 6″ | 7-1/4″” | 6″ | .55 |
8″ Uptown | 8″ | 9-1/4″ | 8″ | .9 |
PVC Columns | Frequently Asked Questions
Can I paint PVC Columns?
All PVC Column Wraps come in a standard white finish. This finish is weather resistant, so no painting is required. However, all PVC Column Wraps can be painted with 100% acrylic exterior paint or acrylic with urethane additive paint. Paint should feature a Light Reflective Value (LRV) of greater than 55. At this time painting does void the warranty.
What size PVC column do I need?
For Snap-Tite PVC® columns, a 6” column wraps a 4×4 post, and an 8” column wraps a 6×6 post. This product is available in 8’ or 10’ lengths.
How do I install PVC Columns?
How to Install Snap-Tite® PVC Column Wraps
Click here to view complete Snap-Tite PVC column installation instructions.
How do I anchor PVC columns?
Be sure to secure your PVC column at both the capital and the base, according to standard construction practices, using one of the prescribed methods below.
Method A: L-brackets are a commonly used method (sold separately).
Method B: Screw directly into the treated wood post (if the column is within 1/4” centered).
Method C: For a Post Jack, add four treated blocks (two top and two bottom) around jack to drill screw into. Size of blocks are dependent on area between column ID and Post Jack. When drilling, for cement use Tapcon screws, for wood use wood screws.
Do I need spacers on my existing columns?
While not a requirement, spacers will alleviate potential weakness along the long portions of the column. Some installers will choose to use spacers on all four sides, while others will use spacers on one side while securing columns to load support on one side.
Are PVC columns load bearing?
PVC are wrap-around only, and should not be used in load-bearing applications.
Do I need to glue Snap-Tite® columns?
Superior’s Snap-Tite® PVC Column Wraps use a patented design that is the industry’s first and only column wrap that does not require PVC Glue or other adhesives. Simply snap together the columns and enjoy your new Snap-Tite® PVC Column Wrap.
Can I attach railing to PVC Columns?
Yes, your railing can be attached to your PVC column. However, proper blocking will need to be installed on the support column to ensure a strong connection.
Where can I buy PVC columns?
Visit our online store at BuyMBS.com for online ordering of aluminum columns, PVC columns, caps and bases, and accessories. To find a local store or lumber yard that can order Superior aluminum columns, visit our “Find a Location” page.
For large orders or bulk pricing, please contact us for more information.
