ALUMINUM COLUMNS

ALUMINUM COLUMNS

Load-bearing columns built with style and strength

View Product Brochure
Round Aluminum Columns

Superior Aluminum Columns

Superior’s Aluminum Columns provide strength and elegance for porches, entryways, gazebos, and more, blending traditional details with modern reliability. Available in multiple styles, caps, and bases, each column can be customized by diameter, length, and finish to suit any project. Superior has the perfect column solution for both commercial and residential needs.

Product Qualities:

  • Load-Bearing Strength – All Superior column profiles provide load-bearing support to any project…. some sizes can hold up to 75,000 lbs.!
  • Wrap-Around – All Superior columns can be utilized as wrap-around column covers. Covering old support structures is an easy solution for a quick and effective remodel.
  • Variety – Four diverse columns styles are available with multiple color and size customization options in each style. This creates products to match exact design preferences for everyone and all locations.
  • Durability – Aluminum columns are more resilient than wood columns, as they will not warp, rot, or split and don’t require frequent repainting!
  • Easy Assembly – All columns from Superior Aluminum are installed in just a few easy steps, thanks to a simple snap-together design. Caps and bases only need to be slipped on and attached, or locked together and attached for wrap-around applications.
Find a Store
Round Aluminum Columns

Superior Aluminum Columns

Superior’s Aluminum Columns provide strength and elegance for porches, entryways, gazebos, and more, blending traditional details with modern reliability. Available in multiple styles, caps, and bases, each column can be customized by diameter, length, and finish to suit any project. Superior has the perfect column solution for both commercial and residential needs.

Product Qualities:

  • Load-Bearing Strength
  • Wrap-Around Functionality
  • Variety of Size and Style
  • Long-Lasting Quality
  • Easy Assembly
Find a Store Near Me

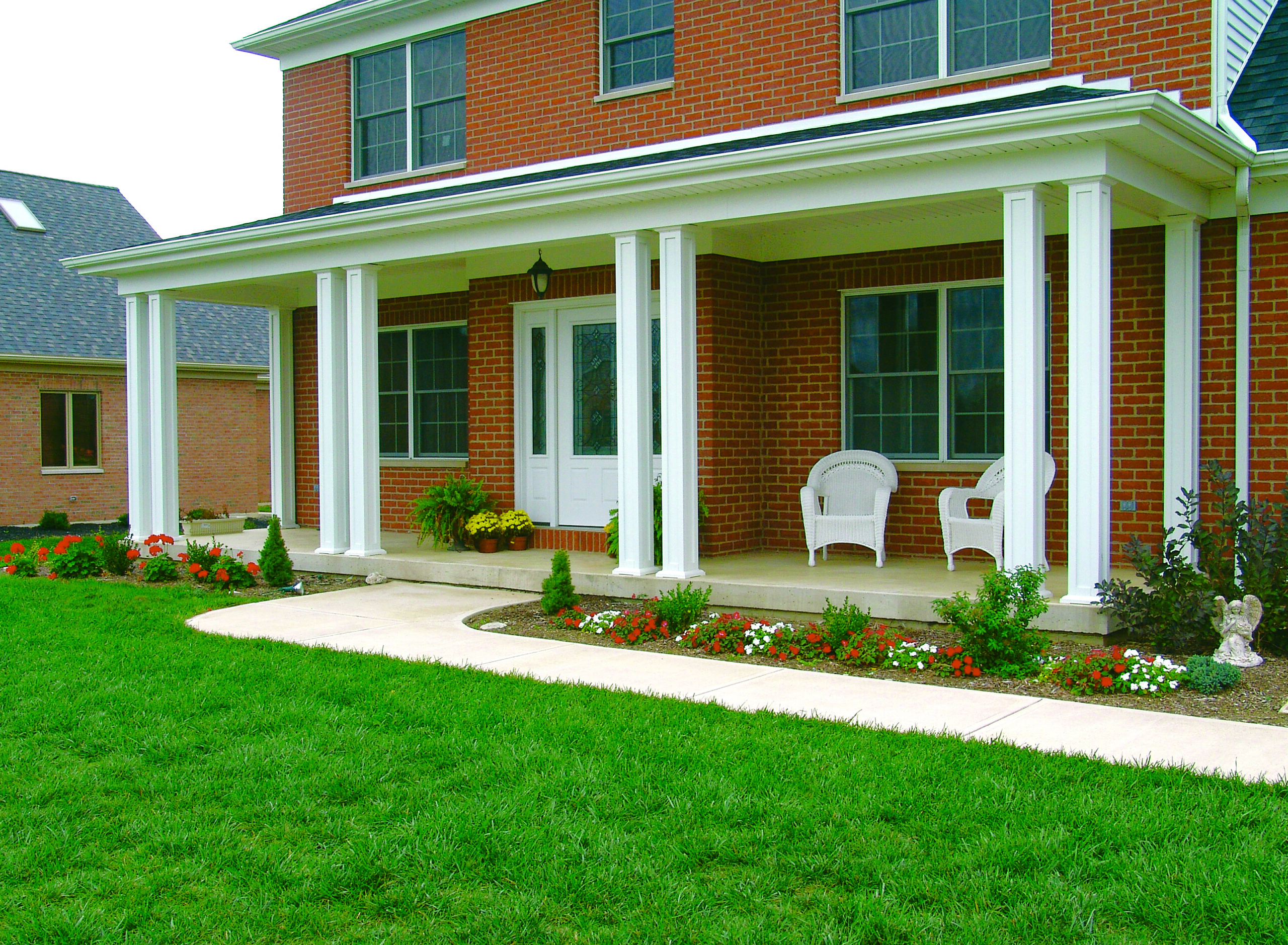

Square Fluted, Panel, & Smooth Aluminum Columns

Three square column styles offer load-bearing strength and a natural look, with aluminum that resists rust, rot, and warping. Maintenance-free and lightweight, they enable quick, easy installation by one person. Wrap-around functionality modernizes spaces by concealing old supports, with special caps and bases available for these applications. Save time and money effortlessly!

Square Smooth

Square Fluted

Square Panel

Wrap-Around

All square columns feature wrap-around
functionality to freshen up a tired look.

Load-Bearing

Square columns will support the weight
of roof overhangs or hold up a covered walkway.

Standard Finishes – Always Available

WHITE

BLACK

DARK BRONZE

SANDSTONE

MILL

GRAY

Square Aluminum Column Dimensions
& Load Bearing Data

Square Fluted

Square Fluted

Nominal Diameter A (OD) Max. Square Encaseable No. Staves Load Lbs. Tested Length Standard Lengths (Ft)*
4″ 4″ 3-1/8″ 2 13,000 8′ 8′, 10′
6″ 5-1/2″ 4-5/8″ 4 12,000 8′ 8′, 9′, 10′, 20′
8″ 7-1/2″ 6-1/2″ 4 18,000 8′ 8′, 9′, 10′, 12′, 20′
10″ 9-1/2″ 8-1/2″ 4 33,000 12′ 8′, 10′, 12′, 16′
12″ 11-1/2″ 10-1/2″ 4 27,660 15′ 10′, 12′, 16′, 20′
16″ 15-1/2″ 13-3/4″ 4 13,000 16′ 16′, 20′, 24′
*Subject to availability.  Unlisted lengths available upon request.

Square Panel

Square Panel

Nominal Diameter A (OD) Max. Square Encaseable No. Staves Load Lbs. Tested Length Standard Lengths (Ft)*
6″ 5-1/2″ 4-3/16″ 4 38,000 8′ 8′, 9′, 10′, 20′
8″ 7-1/2″ 6-3/16″ 4 60,000 8′ 8′, 9′, 10′, 12′, 20′
10″ 9-1/2″ 8-1/8″ 4 80,000 12′ 8′, 10′, 12′, 20′
12″ 11-1/2″ 10-1/8″ 4 75,000 16′ 10′, 12′, 16′, 20′
16″ 15-1/2″ 13-7/8″ 8 75,000 16′ 16′, 20′, 24′
*Subject to availability.  Unlisted lengths available upon request.

Square Smooth

Square Smooth

Nominal Diameter A (OD) Max. Square Encaseable No. Staves Load Lbs. Tested Length Standard Lengths (Ft)*
4″ 4″ Not Available as Wraparound 1 15,000 8′ 8,’ 10′
6″ 5-1/2″ 4-9/16″ 4 13,000 8′ 8′, 9′, 10′, 20′
8″ 7-1/2″ 6-1/2″ 4 19,000 8′ 8′, 9′, 10′, 12′, 20′
10″ 9-1/2″ 8-1/16″ 4 45,000 16′ 8′, 10′, 12′, 20′
12″ 11-1/2″ 10-1/16″ 4 50,000 16′ 10′, 12′, 16′, 20′
*Subject to availability.  Unlisted lengths available upon request.

Standard Square Caps & Bases

Standard Square

Nominal Diameter A (ID) B (OD) C (Height)
4″ 4″ 6″ 1-3/8″
6″ 5-1/2″ 8-1/2″ 2″
8″ 7-1/2″ 10-1/2″ 2″
10″ 9-1/2″ 12-1/2″ 2-5/16″
12″ 11-1/2″ 15″ 2-1/2″
16″ 15-1/2″ 20″ 3″

Doric Square Caps & Bases

Doric Square

Nominal Diameter A (ID) B (OD) C (Height)
4″ Not Available
6″ 5-1/2″ 10-1/2″ 3-3/4″
8″ 7-1/2″ 12-1/2″ 3-3/4″
10″ 9-1/2″ 14-1/2″ 3-3/4″
12″ 11-1/2″ 16-1/2″ 3-3/4″
16″ 15-1/2″ 20-1/2″ 3-3/4″

Charleston Square (CAP)

Charleston Square (CAP)

Nominal Diameter A (ID) B (OD) C (Height)
4″ Not Available
6″ 5-1/2″ 9-1/4″ 6-1/2″
8″ 7-1/2″ 11-1/4″ 6-1/2″
10″ 9-1/2″ 13-1/4″ 6-1/2″
12″ 11-1/2″ 17-1/4″ 10″
16″ 15-1/2″ 21-1/4″ 10″

Savannah Square (BASE)

Savannah Square (BASE)

Nominal Diameter A (ID) B (OD) C (Height)
4″ Not Available
6″ 5-1/2″ 8″ 5-1/4″
8″ 7-1/2″ 10″ 5-1/4″
10″ 9-1/2″ 12″ 5-1/4″
12″ 11-1/2″ 14″ 5-1/4″
16″ 15-1/2″ 18″ 5-1/4″

Round Fluted Aluminum Columns

Superior Aluminum’s round fluted columns blend historic elegance with modern durability. Made from sustainable aluminum, they withstand harsh weather and maintain a flawless appearance without rust, rot, or warping. Available in both load-bearing and wrap-around options, these columns modernize spaces by concealing dated supports. Most sizes require only one person for quick, effortless installation, saving time and costs

Wrap-Around

All round columns feature wrap-around
functionality to freshen up a tired look.

Load Bearing Aluminum Columns

Load-Bearing

Round columns will support the weight
of roof overhangs or hold up a covered walkway.

Standard Finishes – Always Available

WHITE

SANDSTONE

MILL

Round Aluminum Column Dimensions
& Load Bearing Data

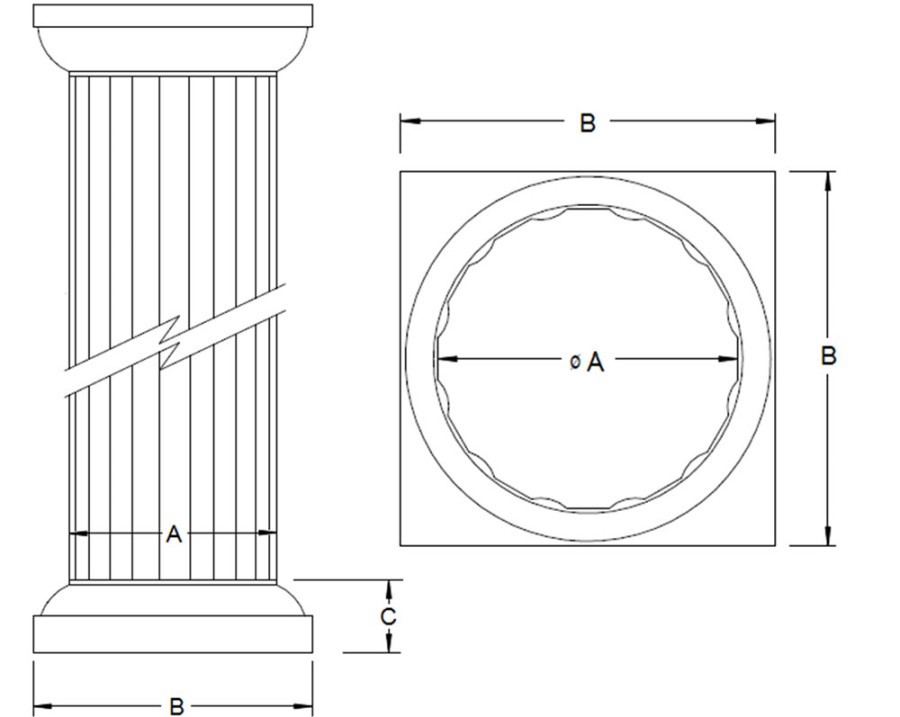

Dimensions and drawings of aluminum columns

Round Fluted

Round Fluted

Nominal Diameter Actual OD (A Above) Actual ID Max. Square Encaseable No. Staves Standard Lengths (Ft)* Load Lbs.** Tested Length
6″ 5-5/8″ 4-3/4″ 3-1/2″ 3 8′, 9′, 10′, 12′ 13,000 8′
8″ 8″ 7-1/8″ 5-1/4″ 3 8′, 9′, 10′, 12′, 14′, 16′ 22,000 8′
10″ 10″ 8-7/8″ 6-1/4″ 4 8′, 9′, 10′, 12′, 14′, 16′, 18′, 20′ 25,000 12′
12″ 11-1/4″ 9-7/8″ 6-7/8″ 5 8′, 9′, 10′, 12′, 16′, 18′, 20′ 30,000 12′
15″ 14-3/8″ 13-1/8″ 9-1/4″ 6 12′, 16′, 18′, 20′ 34,000 12′
18″ 18″ 16″ 11-5/16″ 6 16′, 18′, 20′ 38,000 18′
24″ 24″ 22″ 15-9/16″ 6 16′, 18′, 20′, 24′ 50,000 18′
30″ 30″ 28″ 19-13/16″ 8 16′, 18′, 20′, 24′ 58,000 18′
*Subject to availability.  Unlisted lengths available upon request.
**Includes safety factor.  Wraparound applications of 10″ diameter and greater are non-load bearing

Standard Round

Standard Round

Nominal Diameter X (ID) Y (OD) Z (Height)
6″ 5-5/8″ 7-3/4″ 1-15/16″
8″ 8″ 10″ 2-1/16″
10″ 10″ 12-1/4″ 2-7/16″
12″ 11-1/4″ 14-1/8″ 3″
15″ 14-3/8″ 17-7/8″ 3-1/2″
18″ 18″ 21-5/8″ 3-3/4″
24″ 24″ 28″ 4-3/8″
30″ Not Available

Doric Round

Doric Round

Nominal Diameter X (ID) Y (OD) Z (Height)
6″ Not Available
8″ 8″ 12-1/4″ 3-3/4″
10″ 10″ 14-1/2″ 4-1/4″
12″ 11-1/4″ 17″ 5″
15″ 14-3/8″ 20-3/4″ 5-3/4″
18″ 18″ 25-1/2″ 6-1/2″
24″ 24″ 31-3/4″ 7-1/8″
30″ 30″ 43-5/8″ 9-1/2″

Scamozzi Round(CAP)

Scamozzi Round (CAP)

Nominal Diameter X (ID) Y (OD) Z (Height)
6″ Not Available
8″ 8″ 12″ 5-1/8″
10″ 10″ 12″ 5-1/8″
12″ 11-1/4″ 14-1/2″ 6-1/2″
15″ 14-3/8″ 18-1/2″ 7-1/2″
18″ 18″ 27″ 7-3/4″
24″ 24″ 38-1/2″ 14-3/8″
30″ Not Available

Corinthian Round (CAP)

Corinthian Round (CAP)

Nominal Diameter X (ID) Y (OD) Z (Height)
6″ Not Available
8″ 8″ 15-3/4″ 10″
10″ 10″ 15-3/4″ 10″
12″ 11-1/4″ 20″ 12-1/2″
15″ 14-3/8″ 23-1/2″ 15″
18″ 18″ 26-1/2″ 18″
24″ 24″ 35-1/2″ 25″
30″ Not Available

Aluminum Columns | Frequently Asked Questions

Are aluminum columns load-bearing?

Yes, most Superior Aluminum columns are load-bearing. Reference the table below for information on maximum load-bearing capabilities for each aluminum column style.

Aluminum Column Maximum Load Bearing Capability

Please note that round wrap-around columns with a greater than 10” diameter are not load-bearing and should not be used in load-bearing applications.

How much weight can an aluminum column hold?

Load-bearing capabilities vary by style and size of the column. For more information on maximum load-bearing capabilities, reference the table below.

Aluminum Column Maximum Load Bearing Capability

Please note that wrap-around columns with a greater than 10” diameter are not load-bearing and should not be used in load-bearing applications.

Can you paint aluminum columns?

All of Superior’s aluminum product lines are available in a mill finish if painting or chemical treatment by a 3rd party is preferred. However, Superior does not recommend that any of its products be installed permanently without adequate surface protection.

How do you clean aluminum porch columns?

For basic cleaning, Superior’s aluminum products can be cleaned with warm, soapy water to remove dirt and debris from the product. For more intense cleaning, a 1:1 vinegar/hot water mix can help clean and shine your metal. Regular cleaning of the product is suggested to keep your aluminum products in good condition and ensure the durability of the product.

Click here to read our full cleaning and maintenance guide.

Can aluminum columns be set in concrete?

Aluminum columns can be secured to your surface using standard construction practices. L-brackets are a commonly used method to secure your column to the concrete surface.

How to install aluminum columns?

Click here to read our Aluminum Column Assembly and Installation Instructions.

Can you wrap aluminum columns around existing structures?

Yes, almost all aluminum column sizes and styles are available with wrap-around functionality. 4” square smooth columns are not available with wrap-around functionality. For more information please reference the table below

Aluminum Column Maximum Square Encaseable

Can the aluminum columns be cut down?

Aluminum columns can be cut down to size. A chop saw with a metal/carbide tipped blade is ideal for cutting columns down to size. It is recommended that columns be cut slightly smaller than the height of the install area in order to more easily fit.

Click here to view Aluminum Column Assembly and Installation Instructions.

What type of paint is used on the aluminum columns?

PPG Duracron paint is used to paint Superior’s aluminum columns and caps and bases. Duracron extrusion coatings meet AAMA 2603 specifications and offer good film integrity, color control, and weather resistance. They must be factory applied to properly cleaned and pretreated aluminum for optimum performance.

What type of primer and paint should be used if painting Mill?

 A multi-purpose primer that is specially designed for metal should be used to prime your column. This information can be found on the “applications” section on the label of the paint.

Please make sure your surface is clean, dry, and dull before applying primer. The surface of the product should be prepared in alignment with the recommendations of the chosen coating manufacturer to ensure proper adhesion.

Superior does not recommend that any products are installed permanently without adequate surface protection. We encourage you to talk to your local paint store expert or a professional painter to recommend a proper combination based on your particular environment, preferences, and application.

Can I attach railing to aluminum columns?

Yes, your aluminum railing can be attached to your column via Superior Aluminum brackets. Most commonly used are level brackets but vertical or horizontal swivels are available as well. Round Superior Aluminum columns have an option to include an adaptor to create a flat surface.

Attaching a railing to an aluminum column using level brackets

Please note Superior will generally not provide anchors for attaching these brackets to the column. At this time, premium railing options are not able to attach to columns with this system.

Where can I buy aluminum columns?

Visit our online store at BuyMBS.com for online ordering of aluminum columns, PVC columns, caps, bases, and accessories. To find a local store or lumber yard that can order Superior Aluminum columns, visit our “Find a Location” page.
